COMPLETE INTERIORS

L2H2 LONGSLEEPER
GALLEY PASSENGER – SHOWER CABIN
Description

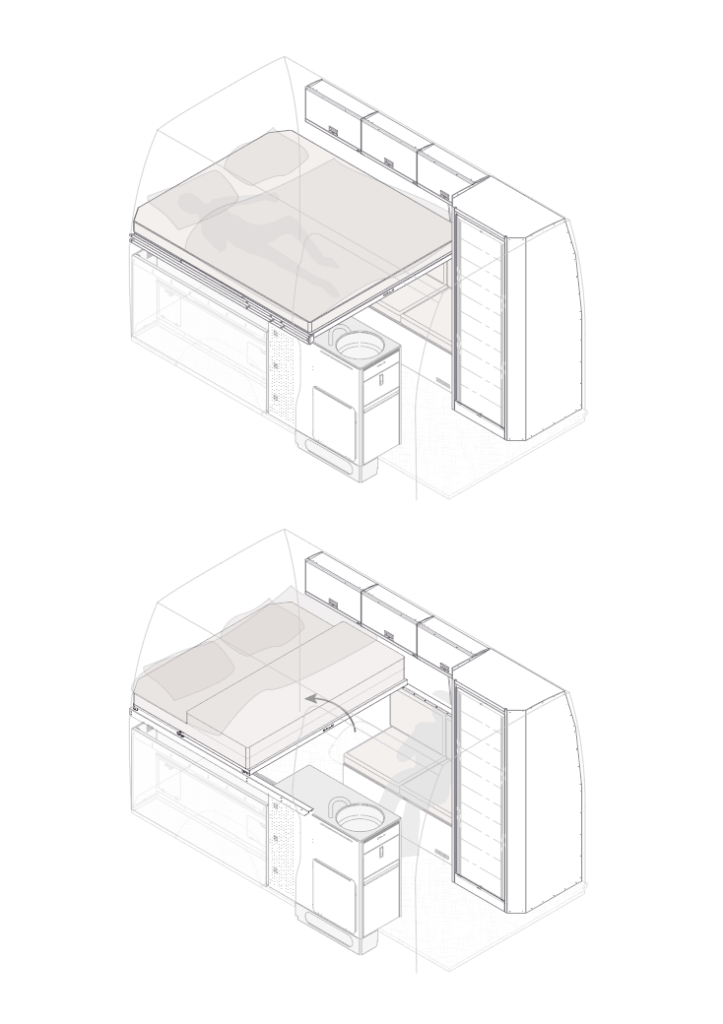

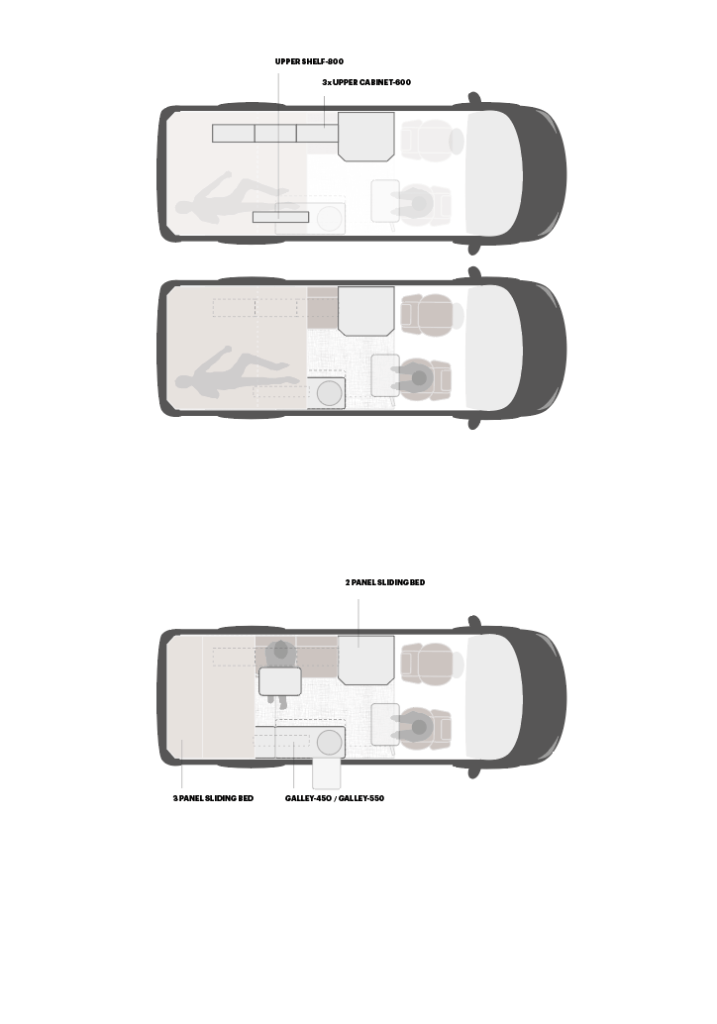

This layout has the unique combination of a long sleeper bed and shower in a 6m van size.
The storage bench 1200 can be exchanged for an automotive bench (singel or double) if more passengers are needed. You can choose between a 50L or 80L build-in fridge depending on the galley.
A lower (portable) toilet can be tucked away in the storage bench. Higher model can be placed in the shower cabin 800.
Colours


Silk / light grey
Anthracite / dark grey
(on request)
Specs
Drives
2-3 Persons
Seats
2-3 Persons
Sleeps
2 Persons
Total weight
161kg (*excluding devices)
Storage volume
cabinets 535L shower 900L garage 2000L
€ 13.885
All prices exclude tax




INTERIOR SYSTEM
EVOLUTION INTERIOR SYSTEM SPR L2H2
30-35kg | 3 season insulation value | driver/side pod cutouts | Integrated ceiling lights
Option: Woven PVC composite floor + aluminium floor trims
+ 16kg | + € 975
Option: Insulated door panels (full set backdoors + sliding door)
+ 8kg | + € 1.125
SLEEPING
3 PANEL SLIDING BED + FOLDABLE MATTRESS
35kg | 170cm x 200cm+
KITCHEN
GALLEY 550
80L fridge | 160L storage | 21kg
GALLEY 450
50L fridge | 170L storage
+ 2,5kg | + € 100
Option: Outdoor table
+ 2,5kg | + € 160
Option: Integrated black sink + cover
+ 3kg | + € 215
SEATING
STORAGE BENCH 1200 + UPHOLSTERY
18kg | 240L storage | Portable toilet
Option: Swivel mount + table top
+ 4,5kg | + € 275
SANITARY
SHOWER CABIN 800
23kg | 900L storage | Build-in / Portable toilet
CABINETS
3x UPPER CABINET 600
14kg | 135L storage
1x UPPER SHELF 800
2,5kg | 20L storage
Option: additional upper cabinet 600
+ 5,5kg | + € 475
Option: additional upper shelf 800
+ 2,5kg | + € 225
Option: Cabinet 450 / H2
A 70L fridge | B Toilet drawer
+ 5,5kg | + € 525 / € 850
GARAGE
2x WHEEL STORAGE BOX
11kg | 90L storage
Option: Wheel cabinet upgrade
A Integrated pressurised water system(55L-100L)
+ 2,5kg | + € 910 / € 1.285
B Integrated electrical system VICTRON | ECOLFOW
+ 2,5kg | + € 910 / € 1.065
Option: Garage drawer 600
3x EURO box | fits 2 bicycles
+ 18,5kg | + € 725
Option: Garage floor + wall
floor segment | 50cm x 120cm
+ 5,5kg | + € 175
wall segment | 35cm x 120cm
+ 3,5kg | + € 125
EVOLUTION INTERIOR SYSTEM
Our interior system outperforms the status quo by being super lightweight, has exceptional insulating properties and is fully compatible with the factory dimensions of Mercedes-Benz. The highest material standard is applied for maximum durability, which includes powder coating aluminium, ABS, hydrofoob closed-cell foam and automotive standard fabrics.
“twice as light, triple insulation value.”

SMART RAIL

INTEGRATED LIGHTS

WINDOW TRIMS
Compatibility
EVOLUTION interior system
VAN models
MB Sprinter L2H2 2006+, VW Crafter 2006-2017
FAQ
HOW LONG DOES IT TAKE TO INSTALL A COMPLETE INTERIOR SET?
DO YOU ALSO OFFER INSTALLATION?
DO I NEED ADDITIONAL INSULATION SINCE THE EVOLUTION SYSTEM PROVIDES THIS?
DO YOU ALSO OFFER AUTOMOTIVE BENCHES?
IS IT POSSIBLE TO ORDER IT IN ANOTHER COLOUR?
Do you have any question about this product or would you like to have it installed?
Ask us or one of our partners
