COMPLETE INTERIORS

L2H2 SIDESLEEPER

GALLEY PASSENGER – NO SHOWER CABIN

Description

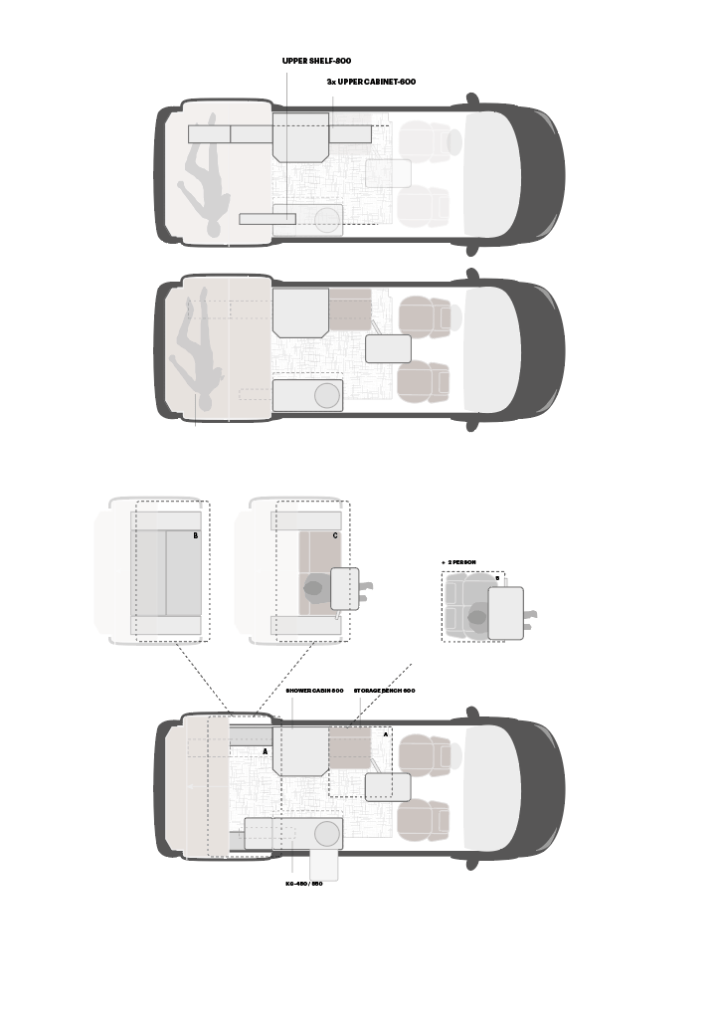

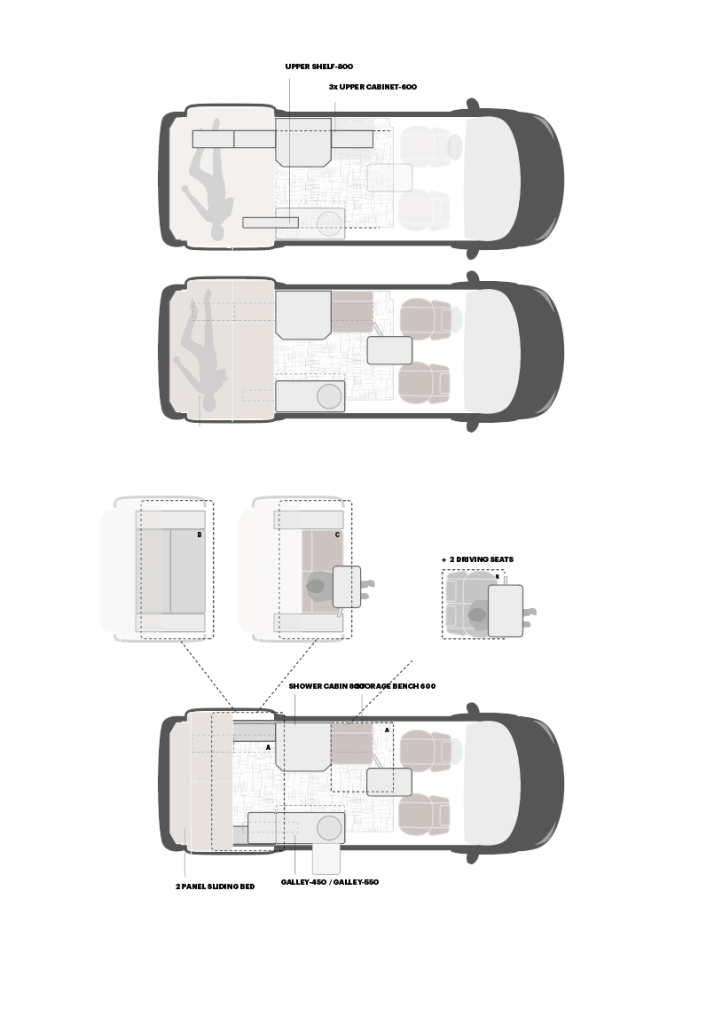

The “classic” floorpan is great for people that prefer optimal space efficiency while not compromising on having a dedicated shower. The swivel seats are an essential part to ensure enough seating positions.

The storage bench 600 can be exchanged for an automotive bench (singel or double) if more passengers are needed. You can choose between a 50L or 80L build-in fridge depending on the galley.

A lower (portable) toilet can be tucked away in the storage bench. Higher models or build-in versions can be placed in the shower cabin 800.

Colours

Silk / light grey

Anthracite / dark grey

(on request)

Specs

Drives

2-5 Persons


Seats

2-3 Persons


Sleeps

2 Persons


Base weight

149kg (*excluding devices)


Storage volume

cabinets 535L shower 900L garage 2000L


from € 12.630

All prices exclude tax

INTERIOR SYSTEM

EVOLUTION INTERIOR SYSTEM SPR L2H2

30-35kg | 3 season insulation value | driver/side pod cutouts | Integrated ceiling lights

Option: Woven PVC composite floor + aluminium floor trims

+ 16kg | + € 975

Option: Insulated door panels (full set backdoors + sliding door)

+ 8kg | + € 1.125

SLEEPING

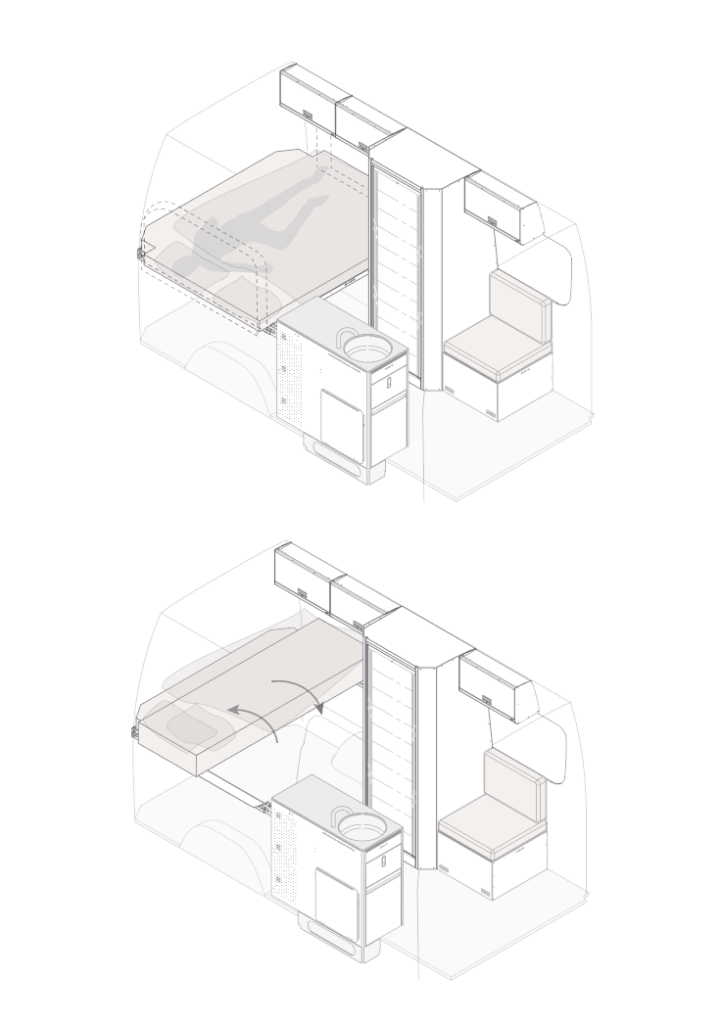

2 PANEL SLIDING BED + FOLDABLE MATTRESS

28kg | 150cm x 190cm+

KITCHEN

GALLEY 550

80L fridge | 160L storage | 21kg

GALLEY 450

50L fridge | 170L storage

+ 2,5kg | + € 100

Option: Outdoor table

+ 2,5kg | + € 160

Option: Integrated black sink + cover

+ 3kg | + € 215

SEATING

STORAGE BENCH 600 + UPHOLSTERY

18kg | 240L storage | Portable toilet

Option: Swivel mount + table top

+ 4,5kg | + € 275

SANITARY

SHOWER CABIN 800

23kg | 900L storage | Build-in / Portable toilet

CABINETS

3x UPPER CABINET 600

14kg | 135L storage

1x UPPER SHELF 800

2,5kg | 20L storage

Option: additional upper cabinet 600

+ 5,5kg | + € 475

Option: additional upper shelf 800

+ 2,5kg | + € 225

GARAGE

2x WHEEL STORAGE BOX

11kg | 90L storage

Option: Wheel cabinet upgrade

A Integrated pressurised water system(55L-100L)

+ 2,5kg | + € 910 / € 1.285

B Integrated electrical system VICTRON | ECOLFOW

+ 2,5kg | + € 910 / € 1.065

Option: Garage drawer 600

3x EURO box | fits 2 bicycles

+ 18,5kg | + € 725

Option: Garage floor + wall

floor segment | 50cm x 120cm

+ 5,5kg | + € 175

wall segment | 35cm x 120cm

+ 3,5kg | + € 125

Our interior system outperforms the status quo by being super lightweight, has exceptional insulating properties and is fully compatible with the factory dimensions of Mercedes-Benz. The highest material standard is applied for maximum durability, which includes powder coating aluminium, ABS, hydrofoob closed-cell foam and automotive standard fabrics.

“twice as light, triple insulation value.”

SMART RAIL

INTEGRATED LIGHTS

WINDOW TRIMS

EVOLUTION interior system

MB Sprinter L2H2 2006+, VW Crafter 2006-2017

FAQ

HOW LONG DOES IT TAKE TO INSTALL A COMPLETE INTERIOR SET?

It typically takes about 1-2 full days to get the interior system in, but takes about 1-2 weeks total if you include heating, electrical wiring and water systems. Take into account that depending on the complexity of the layout it can vary a lot. In addition the amount of building experience in general and efficiency of your working area also determines the progression pace. Please do not forget to enjoy the process.

DO YOU ALSO OFFER INSTALLATION?

Our main focus is to make products that can be installed by anyone with basic technical knowledge and do not offer any installation ourselves at the moment. Any specialised company in the automotive sector should be able to work with our products and provide additional assistance if nessecary.

DO I NEED ADDITIONAL INSULATION SINCE THE EVOLUTION SYSTEM PROVIDES THIS?

The insulation value of the interior walls and ceiling is 3-season ready and equivalent to a 13mm continues layer of traditional insulation(ARMAFLEX/X-TREM). We do recommend to add an extra layer on the ceiling (in particular the area above the cabin), since it has the highest transfer of heat/cold. When planning on going to extreme weather conditions we recommend to add a thin layer of closed-cell foam and/or combination of wool fiber(synthetic) in the cavities of the wall. Note that a self adhesive closed cell insulation like ARMAFLEX might not reach all locations. Also take into account that areas like windows and doors will become more critical when the temperature difference increases.

DO YOU ALSO OFFER AUTOMOTIVE BENCHES?

Due to irregular regulations in addition to an often mandatory qualified instalment we do not offer any seating products that are road legal. We advice to consolidate this in your local region or country to see what possibilities are.

IS IT POSSIBLE TO ORDER IT IN ANOTHER COLOUR?

Since we prioritise long term flexibility and consistent uniformity in our products we don’t offer individual options

Do you have any question about this product or would you like to have it installed?

Ask us or one of our partners
